Mobile
2 x 4G/LTE (Cat 6), 3G
Flash memory & RAM
256 MB Flash, 256 MB RAM
Powering option
4-pin power socket, 9-50 VDC

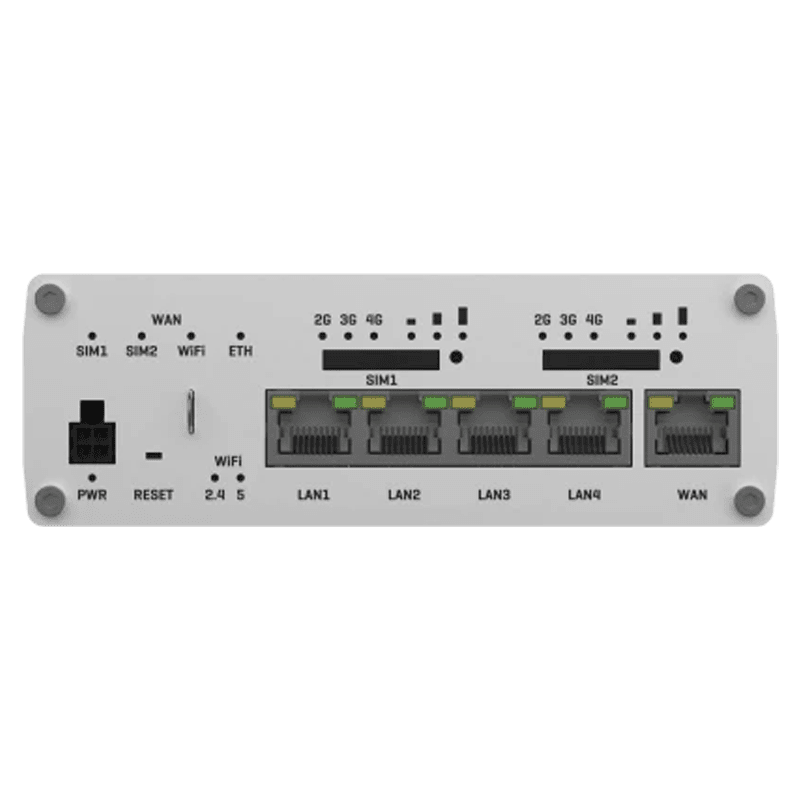

Ethernet
5 x RJ45 ports, 10/100/1000 Mbps:
1 x WAN (configurable as LAN),
4 x LAN
Wi-Fi
IEEE 802.11b/g/n 2.4GHz, IEEE
802.11a/n/ac 5GHz, Access point
(AP), Station (STA)
Interfaces
1 x USB host; On 4-pin socket:
1 x Digital input, 1 x Digital open
collector output; GNSS
Bluetooth
4.0 (Low energy)
Housing & mounting
Aluminium housing with DIN rail
mounting option
Measurements & weight
132 x 44.2 x 95.1 mm, 540 g
